In-Screed Hydronic Heating

In-screed hydronic heating for Sydney and NSW projects, installed above the structural slab and beneath the finished floor.

Installed above the structural slab

Pipework within the screed layer

Floor height and finish planning

Design, supply and installation

Installation method

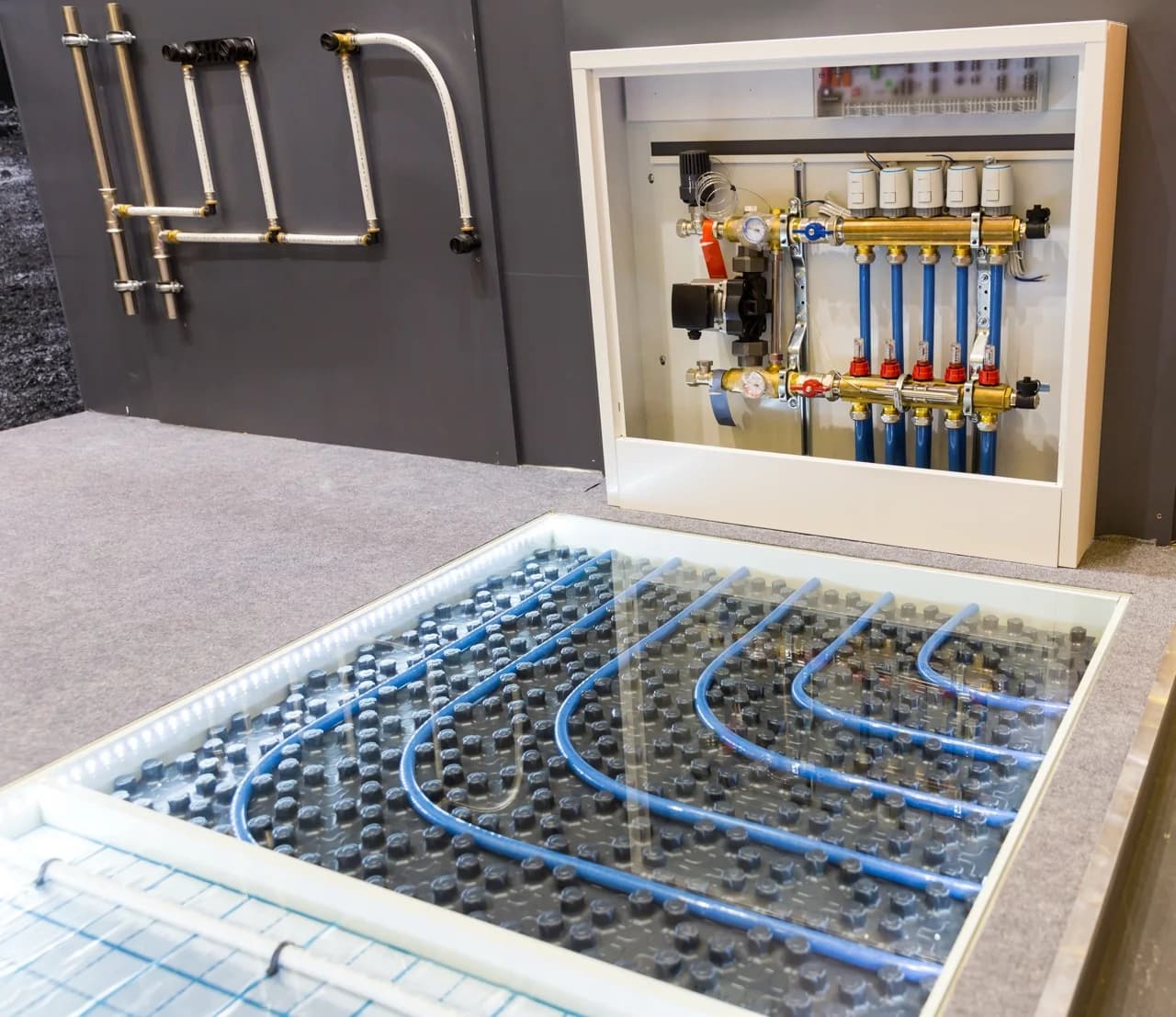

In-Screed Floor Heating

Warm-water pipes are installed within a screed layer above the structural slab. The floor depth, insulation and finish are checked before installation.

A heat pump or boiler heats the water. It circulates through the floor pipes, releases heat into the floor and returns to be reheated.

Floor layers

Floor Construction

Pipework sits within the screed above the structural slab. The insulation, screed and floor finish are specified for each project.

In-screed floor layers above a structural slabExample floor layers, from top to bottom: floor finish, screed surrounding hydronic pipework, Profi Duo insulation and fixing boards, and structural slab. Layer thicknesses and pipe spacing are not to scale.01020304FINISHED FLOORSCHEMATIC · NOT TO SCALE
Example layers using Profi Duo boards, as used in the South Bowenfels project. Thicknesses are illustrative.
  1. Selected floor finish

    Flooring and adhesive selected for compatibility with underfloor heating.

  2. Screed around the hydronic pipework

    Warm-water pipes surrounded by screed above the structural slab.

  3. 10mm Profi Duo board system

    Profi Duo insulation and fixing boards installed below the pipework in the South Bowenfels project.

  4. Structural slab

    The structural slab supports the floor layers above it.

Project examples

Installation Examples

Profi Duo boards and fixing rails are two methods used in SmartHeat installations.

South Bowenfels · Central Tablelands, NSW

Profi Duo board system

10mm Profi Duo boards

Profi Duo insulation and fixing boards supporting the pipework. SmartHeat supplied the boards, installed the pipes and connected the manifold.

Bronte · Eastern Suburbs, NSW

Pipework on fixing rails

10mm hydronic pipe

10mm pipework secured to fixing rails, laid around walls and service openings, and pressure tested before screeding.

Send your floor plans, available height and selected finish to discuss an in-screed installation.

Discuss Your Project

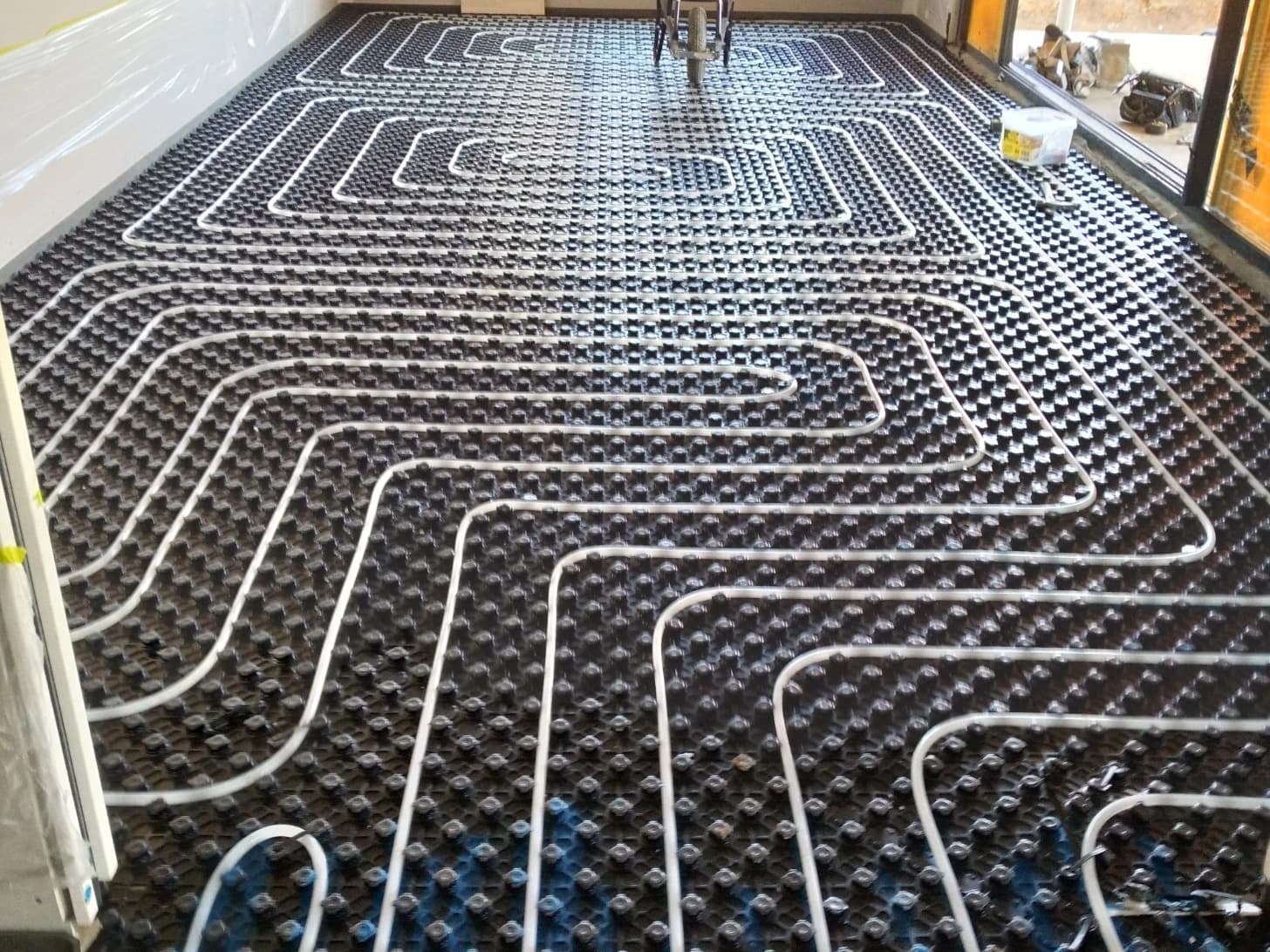

Straight in-screed hydronic heating pipe runs fixed across an interior floor area
Hydronic pipework fixed above the slab before screeding.
In-screed hydronic heating loops coordinated through a living area before floor finishing
Pipe loops set out around room zones and openings.
Large in-screed hydronic heating layout installed across a broad slab area
Multiple pipe circuits installed across a larger floor area.

Planning considerations

Floor Planning

Floor depth, insulation, pipework and the selected finish are planned together before installation.

Floor height

Available floor depth

Allow for the insulation, fixing system, pipework, screed and floor finish when setting the finished floor level.

Floor finish

Compatible flooring

Check the selected flooring and adhesive against the heating design and the flooring manufacturer’s installation and temperature limits.

Insulation

Insulation and pipe fixing

The insulation and fixing method are selected for the floor construction and pipe layout.

Renovations

Existing slab conditions

Check slab condition, floor levels and available height when replacing a floor above an existing slab.

Control

Heating zones

Thermostats and valves control the flow of heated water to the planned rooms or zones.

Heat source

Heat sources

A heat pump or boiler is selected for the building’s heating demand and the water temperature required by the floor system.

Project services

Design & Installation

The floor layers and heating layout are planned before pipework is installed and covered with screed.

  1. 01

    Review the floor

    Review slab levels, available floor height, selected flooring and the rooms to be heated.

  2. 02

    Plan the installation

    Set out the insulation, fixing method, pipe layout, manifold positions and heating zones.

  3. 03

    Install and test pipework

    Install and pressure test the heating pipework before screeding.

  4. 04

    Commission and hand over

    Connect the heat source, fill and check the circuits, configure controls and explain system operation.

Floor construction

Floor Construction Details

The floor section should show the slab, insulation, heating pipework, screed and finish, with the required levels and thicknesses.

Slab preparation
Check slab condition and levels, including any levelling or repairs needed before the floor layers are installed.
Insulation and fixing
Specify the insulation and pipe-fixing system for the heating layout and floor construction.
Screed and floor finish
Specify the screed product, depth and pipe cover. Follow the screed and flooring manufacturers’ curing and first-heating instructions.
Heating installation
Plan pipe spacing, circuit lengths, manifold positions and connections before installation.
Commissioning and handover
Filling, air removal, flow checks and control settings form part of the system setup before handover.

Suitable projects

Suitable Projects

  • Major renovations with new floor build-up
  • Bathrooms, kitchens and tiled living areas
  • New homes with a planned screed layer
  • Projects with sufficient height above the structural slab

FAQ

FAQs

What is in-screed hydronic heating?

It is a hydronic underfloor heating system installed above the structural slab within a screed layer, rather than embedded inside the concrete slab itself.

How is it different from in-slab heating?

In-slab pipes sit within the concrete slab; in-screed pipes sit in a screed layer above it. In-screed heating may warm up more quickly, depending on the floor construction, finish and system settings.

Can it be used in renovations?

It may suit renovations where a new screed layer can be installed. Available floor height, slab condition and the selected finish need to be checked first.

Which floor finishes work best?

Tile and stone are common options because they transfer heat well. Other floor finishes need to be checked for compatibility with the heating output and manufacturer limits.

Does a 10mm pipe or board mean a 10mm finished floor build-up?

No. That dimension describes a component. The complete floor height also depends on the insulation, screed, adhesive and finish.

Does SmartHeat include floor preparation and screeding?

Your quote should identify who provides floor preparation, insulation installation and screed supply and laying, alongside the heating work.
